Gears and Gear Related Products
Commercial Gear and Sprocket Co. offers a wide range of gears and gear related products — cut to your print, in the material your application demands, and inspected before they leave the building.
Bevel and Mitre Gears
Bevel and miter gears up to 24" diameter, cut on Gleason generating equipment and inspected on calibrated Gleason checkers.

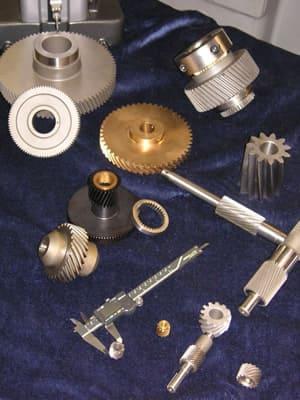

Helical Gears
Helical gears to 16" diameter x 36" face, generated and inspected against lead and profile on calibrated Fellows equipment.

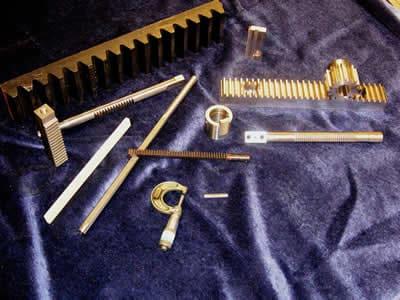

Rack and Pinion
Custom rack and pinion sets cut in cast iron and steel for machine tool, transit and material handling applications.
Ratchets and Jaw Clutches
Ratchets to 30" diameter and jaw clutches to 24" diameter, cut on Whiton milling equipment with face gear attachments.
Splines
Internal and external involute and straight-sided splines in American National Standard, metric DIN and SAE serration forms.
Sprockets
Custom sprockets up to 36" diameter and 2" pitch, cut to print for conveyor, transit and heavy industrial drives.
Spur Gears
Spur gears up to 36" diameter x 36" face, from 96 D.P. to 2 D.P., hobbed and shaped to your print.
Timing/Gear Belt Pulleys
Timing and gear belt pulleys cut to your print for indexing, positioning and synchronous drive applications.
Worm Gears
Worm gears up to 16" diameter, plus worms and lead screws to 12" diameter in any lead, hobbed and thread milled.
Let us solve your gear challenge
Send us a drawing or a description of the application. Our engineering team will review your specifications and come back with a fast, accurate quote.
